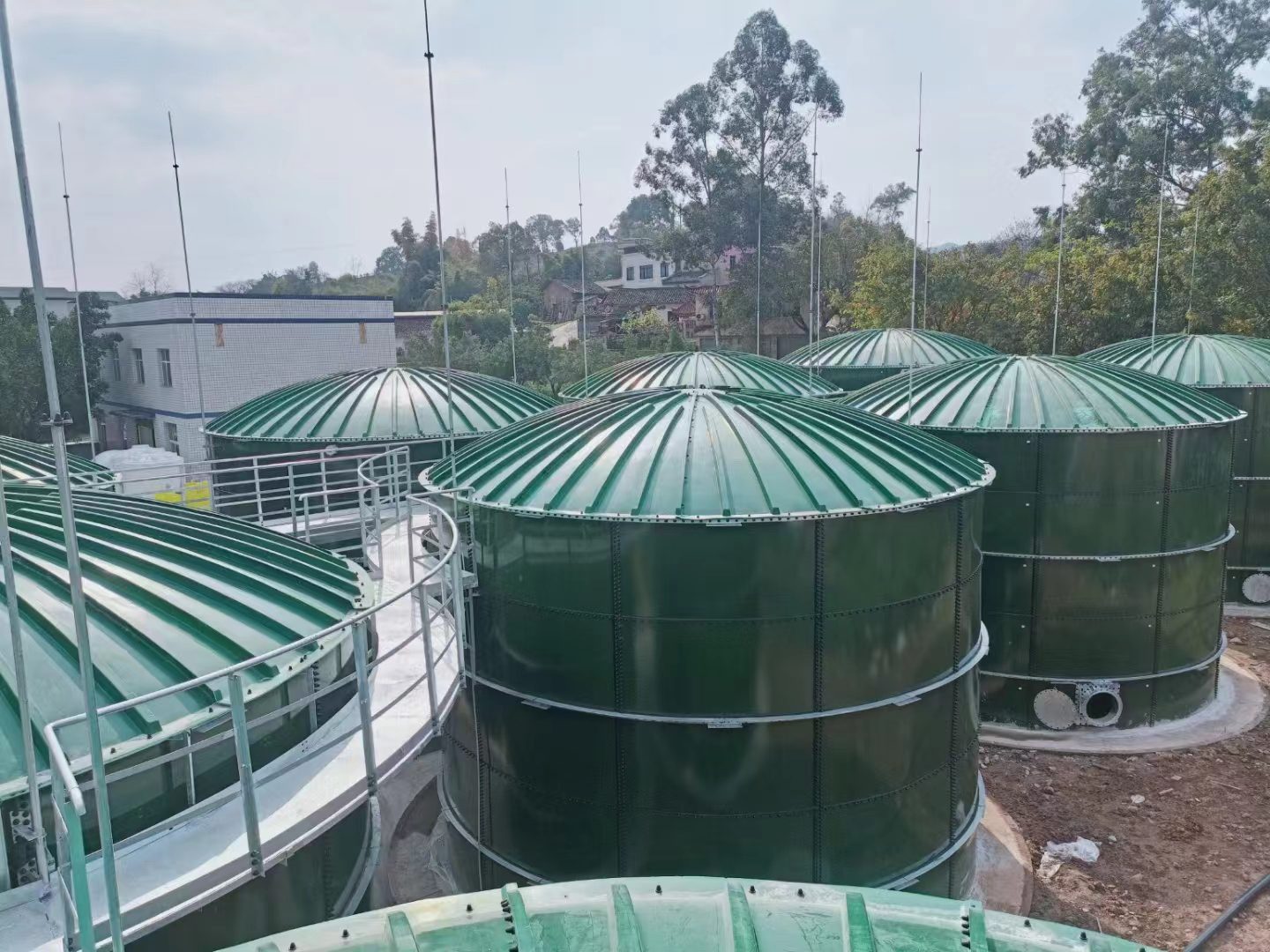

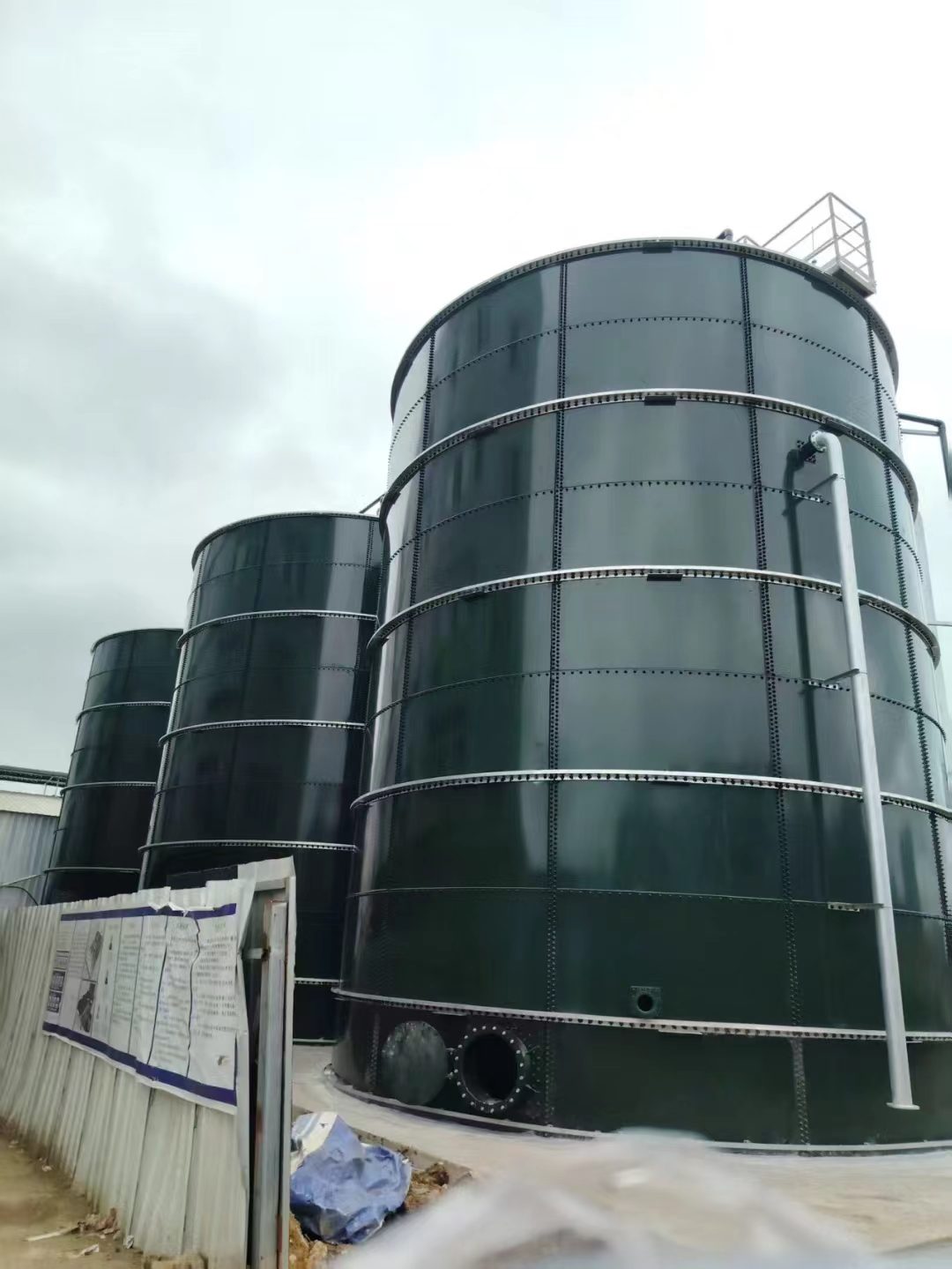

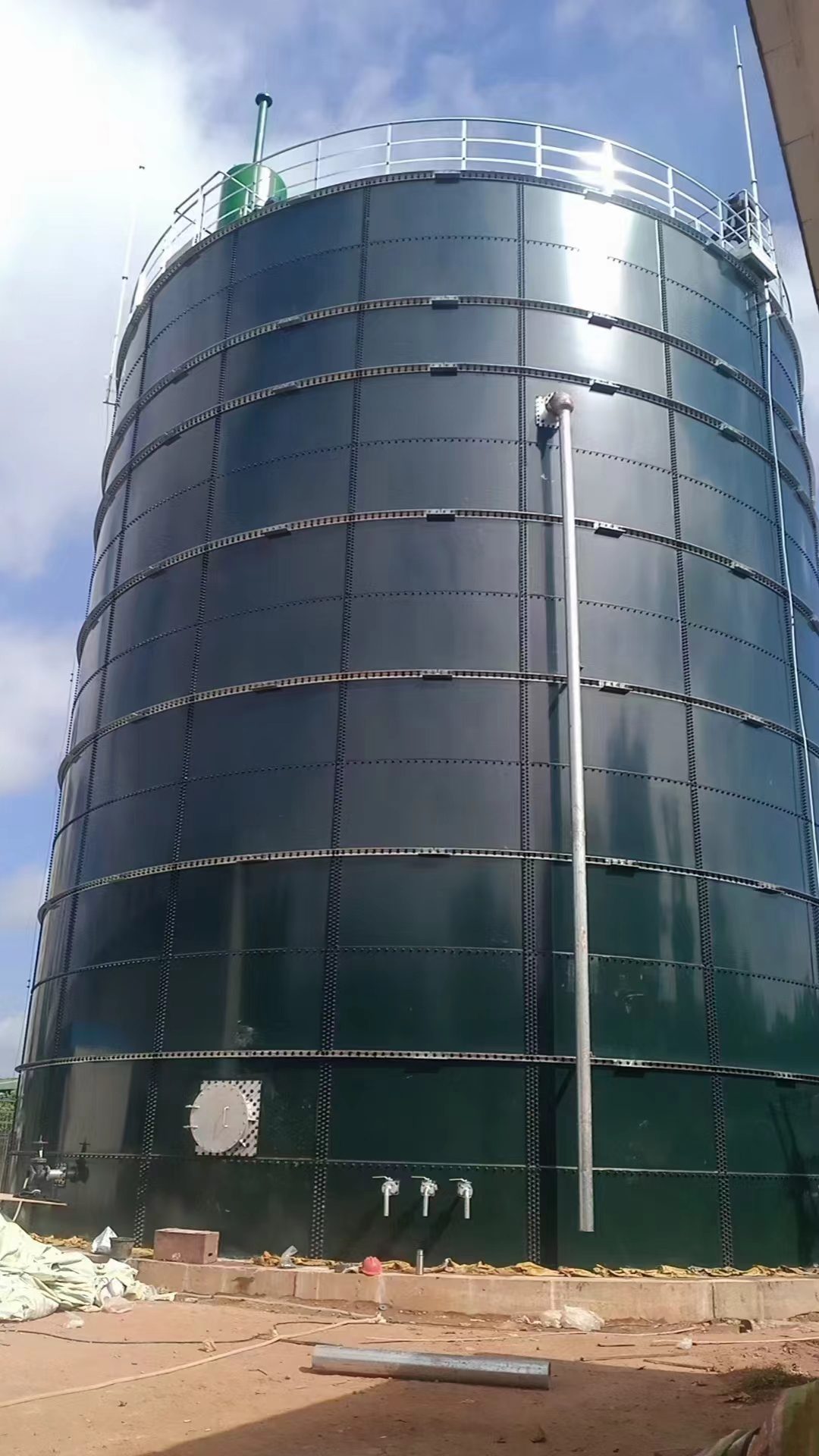

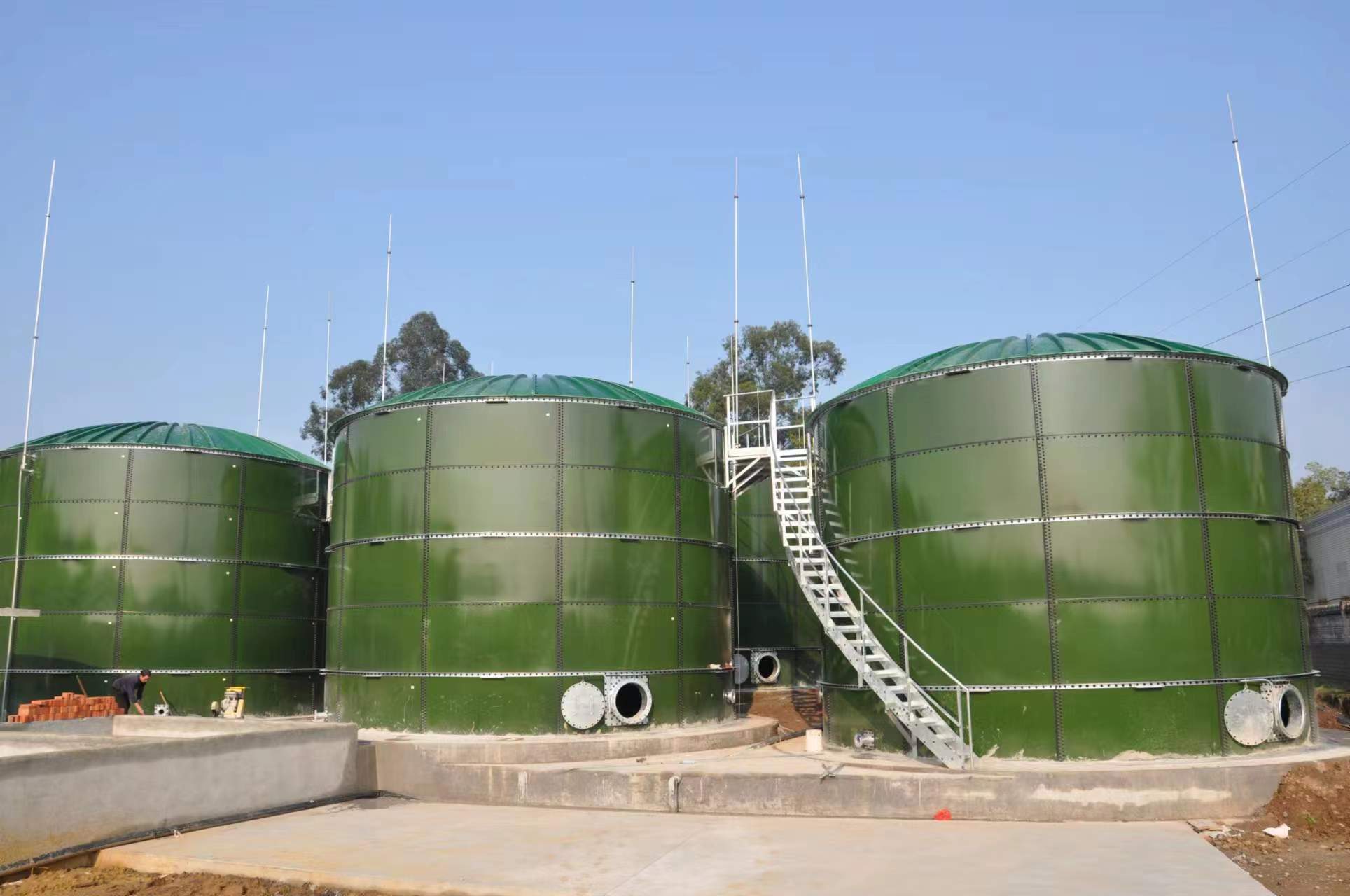

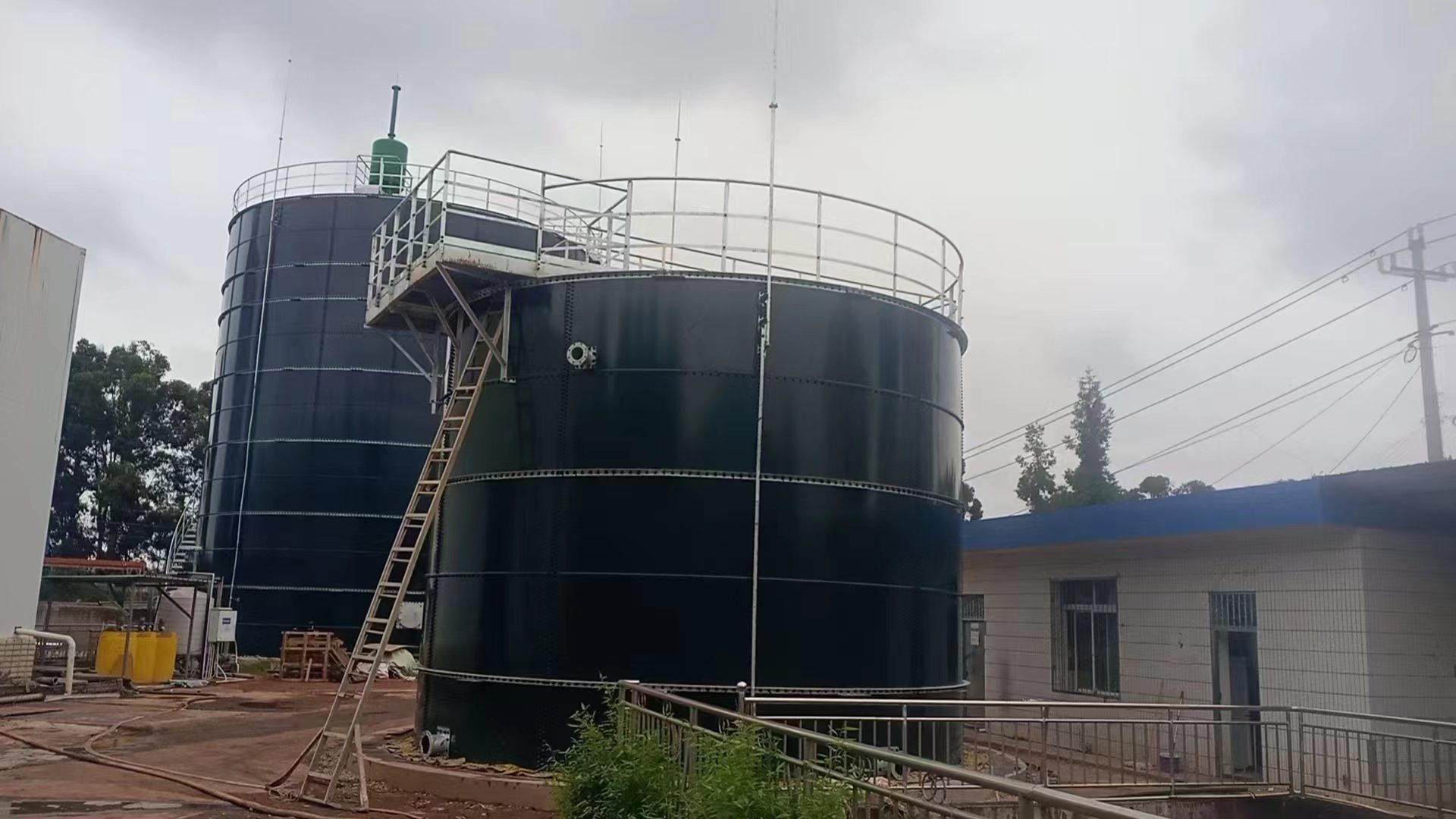

UASB Anaerobic Reactor – Technical Introduction

Description

The Upflow Anaerobic Sludge Blanket (UASB) Reactor is a high-rate anaerobic wastewater treatment technology developed in the 1970s by Professor Gatze Lettinga and his team at Wageningen University, Netherlands. It represents a significant advancement in anaerobic treatment, combining biological digestion with physical separation in a single, compact reactor vessel.

Core Mechanism:

Wastewater flows upward through a dense, biologically active sludge blanket where organic pollutants are broken down by anaerobic microorganisms. The process produces biogas (primarily methane and carbon dioxide) and granular sludge. A three-phase separator (gas-liquid-solid) at the top of the reactor effectively separates biogas, treated effluent, and sludge granules, allowing for sludge retention and return.

Key Components:

1. Influent Distribution System – Ensures even flow distribution at the reactor bottom
2. Sludge Bed & Blanket – Active biomass zones where digestion occurs
3. Gas-Solid-Liquid Separator (GLS) – Critical internal device for phase separation
4. Gas Collection Dome – Collects and channels biogas for utilization
5. Effluent Launder/Trough – Discharges treated water
6. Sludge Withdrawal System – Manages excess sludge

Operating Principle:

Organic loading rates typically range from 5-15 kg COD/m³/day, with hydraulic retention times (HRT) of 6-24 hours depending on wastewater strength and temperature (optimally 35-37°C for mesophilic operation). The system achieves COD removal efficiencies of 70-90% while producing 0.35-0.45 m³ of biogas per kg COD removed (60-70% methane content).

Advantages

Technical & Operational Advantages:

1. High Organic Loading Capacity
   • Handles loading rates 5-10 times higher than conventional anaerobic ponds
   • Compact design with small footprint requirement
2. Energy Positive Process
   • Net energy producer through biogas generation
   • Low energy consumption (primarily for pumping)
   • Biogas can be used for electricity/heat production
3. Operational Efficiency
   • No mechanical mixing required (upflow velocity provides gentle mixing)
   • Granular sludge has excellent settling properties (SVI: 15-30 mL/g)
   • High biomass retention (sludge age: 30-100 days)
   • Minimal sludge production (0.05-0.10 kg VSS/kg COD removed)
4. Process Stability
   • Resilient to organic shock loads
   • Granular sludge resists washout
   • Can handle intermittent feeding
